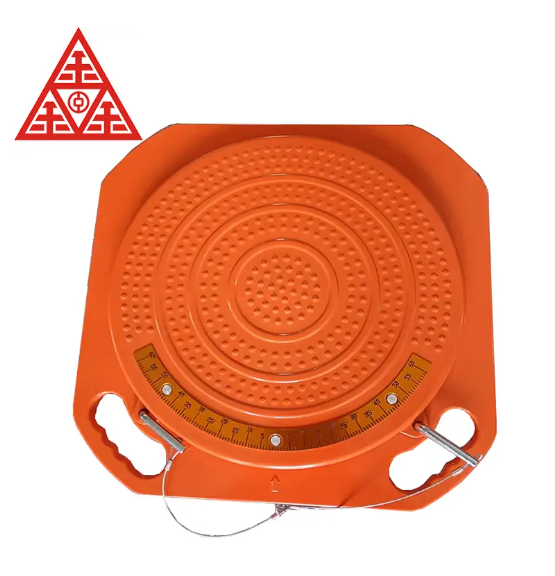

WHEEL ALIGNMENT TURN PLATES: HIGH PRECISION FOR EVERY ALIGNMENT NEED
Explore a full range of options in aluminum, magnesium, steel, and stainless steel. Our turn plates are designed for both passenger cars and heavy-duty trucks.
Each product is crafted with high precision and rigorously tested to ensure smooth and accurate alignment performance.
Customized solutions are also available—discover the perfect fit for your wheel alignment machine.
Products Introduction
As a professional factory specializing in wheel alignment turn plates, we focus on supplying high-quality components to global wheel alignment machine manufacturers. Our turn plates are engineered with precision machining and durable materials, including aluminum, magnesium, steel, and stainless steel, ensuring stable performance and long service life.
Designed as critical accessories for four-wheel alignment systems, these plates provide smooth rotation and accurate response during measurement and adjustment. Each unit is rigorously tested to meet OEM standards, guaranteeing consistency and reliability in mass production.
We understand the requirements of alignment equipment manufacturers and provide customized wheel alignment turn plates to match different machine models and technical specifications. With flexible production capacity and strict quality control, we support both standard supply and tailored solutions.
Partnering with us means direct factory pricing, dependable quality, and long-term cooperation. We are committed to helping alignment machine manufacturers improve product competitiveness with reliable and precise wheel alignment turn plates.
Product Center
Product Advantages of Wheel Alignment Turn Plates
Our car alignment turn plates stand out for their exceptional qualities, combining thoughtful design and reliable performance to meet your every need. Here are their key advantages:
Strong OEM Capability
As a specialized factory, we provide powerful OEM support for wheel alignment turn plates. Our engineering team can customize dimensions, load capacity, material selection, and structural design according to different wheel alignment machine models. With advanced CNC machining, precision testing equipment, and flexible production lines, we ensure every customized solution meets strict technical requirements. This makes us a reliable long-term partner for global alignment equipment manufacturers.
Competitive Factory Advantage
Direct supply from our factory ensures cost efficiency, stable lead times, and scalable capacity to support global demand.
High Precision & Stability
All turn plates are crafted with tight machining tolerances to guarantee smooth rotation and accurate alignment response, helping manufacturers deliver consistent performance in their machines.
Durable Material Options
We offer aluminum, magnesium, steel, and stainless steel turn plates to fit a wide range of applications, from passenger cars to heavy-duty trucks, ensuring strength and long service life.
Strict Quality Control
From raw materials to final assembly, every unit is tested to OEM standards, guaranteeing reliability, accuracy, and batch consistency.
Technical Specifications
Our car alignment turn plates are engineered with precise technical specifications to ensure optimal performance, durability, and adaptability across diverse alignment scenarios. Below are the key technical details that define their functionality and reliability:
Materials
High-strength aluminum: Lightweight yet robust, with excellent corrosion resistance, ideal for standard and precision-focused applications. Steel: Offers enhanced structural rigidity, suitable for heavy-duty use and scenarios requiring maximum load-bearing capacity. Stainless steel: Boasts superior rust resistance and longevity, perfect for environments with high moisture or chemical exposure.
Processing & Surface Treatment
High-precision machining ensures tight tolerances, with surface finishes (such as anti-scratch coatings or polished treatments) that enhance smoothness and reduce friction during wheel rotation. All units undergo strict testing to verify structural integrity, ensuring they meet industry standards for performance and safety.
Load Capacity
Standard models support typical vehicle weights, while heavy-duty variants are engineered to handle large vehicles, with a maximum wheel load of up to 2.5 tons, making them suitable for trucks, buses, and other heavy machinery.

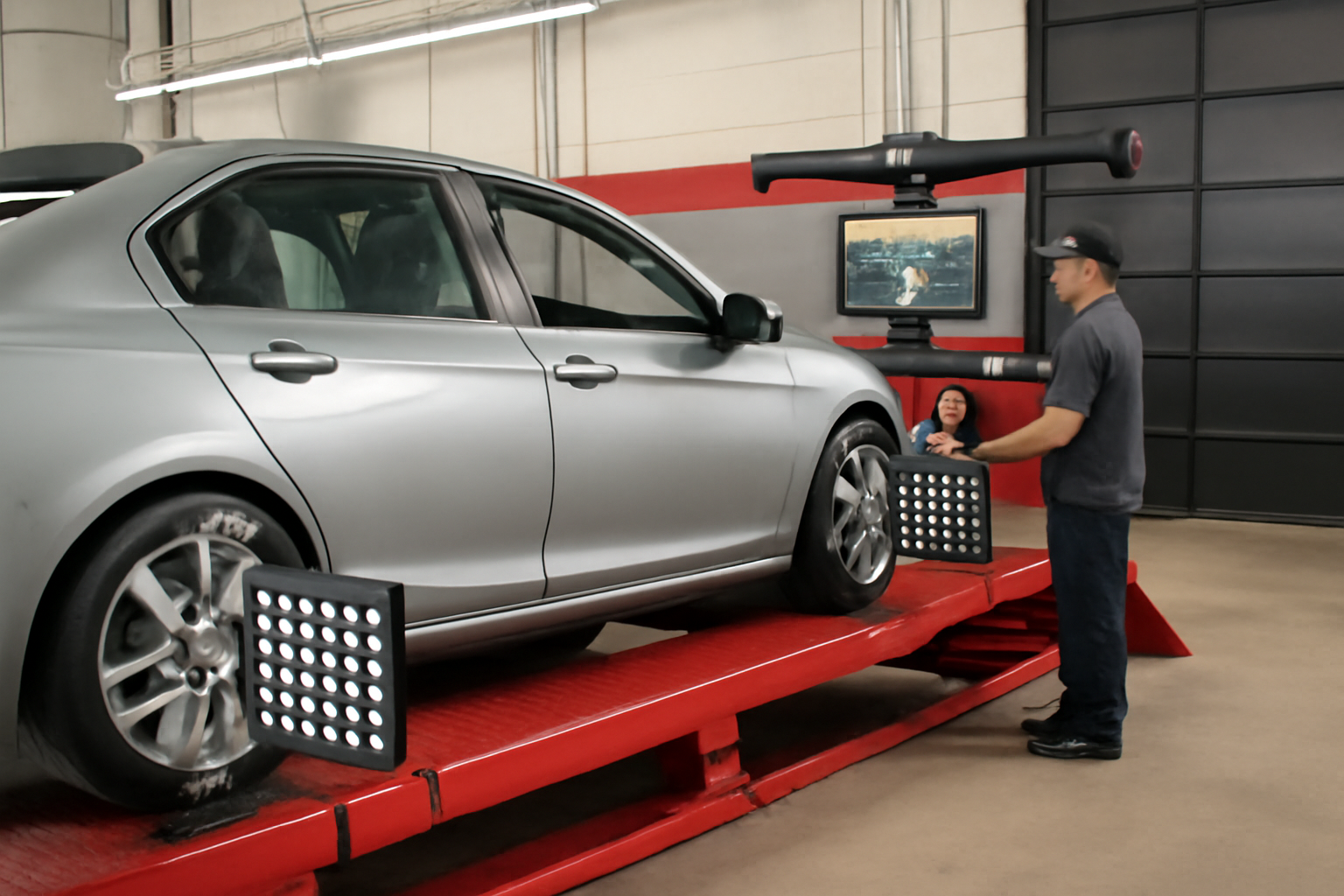

Application
Automotive Repair Shops & Garages
Ideal for daily alignment tasks involving passenger cars, SUVs, and light commercial vehicles. Standard models with high-precision machining and smooth operation enable technicians to measure and adjust wheel angles accurately, ensuring optimal vehicle performance post-repair. Their durable materials and consistent performance streamline routine maintenance, making them a staple in general automotive service settings.

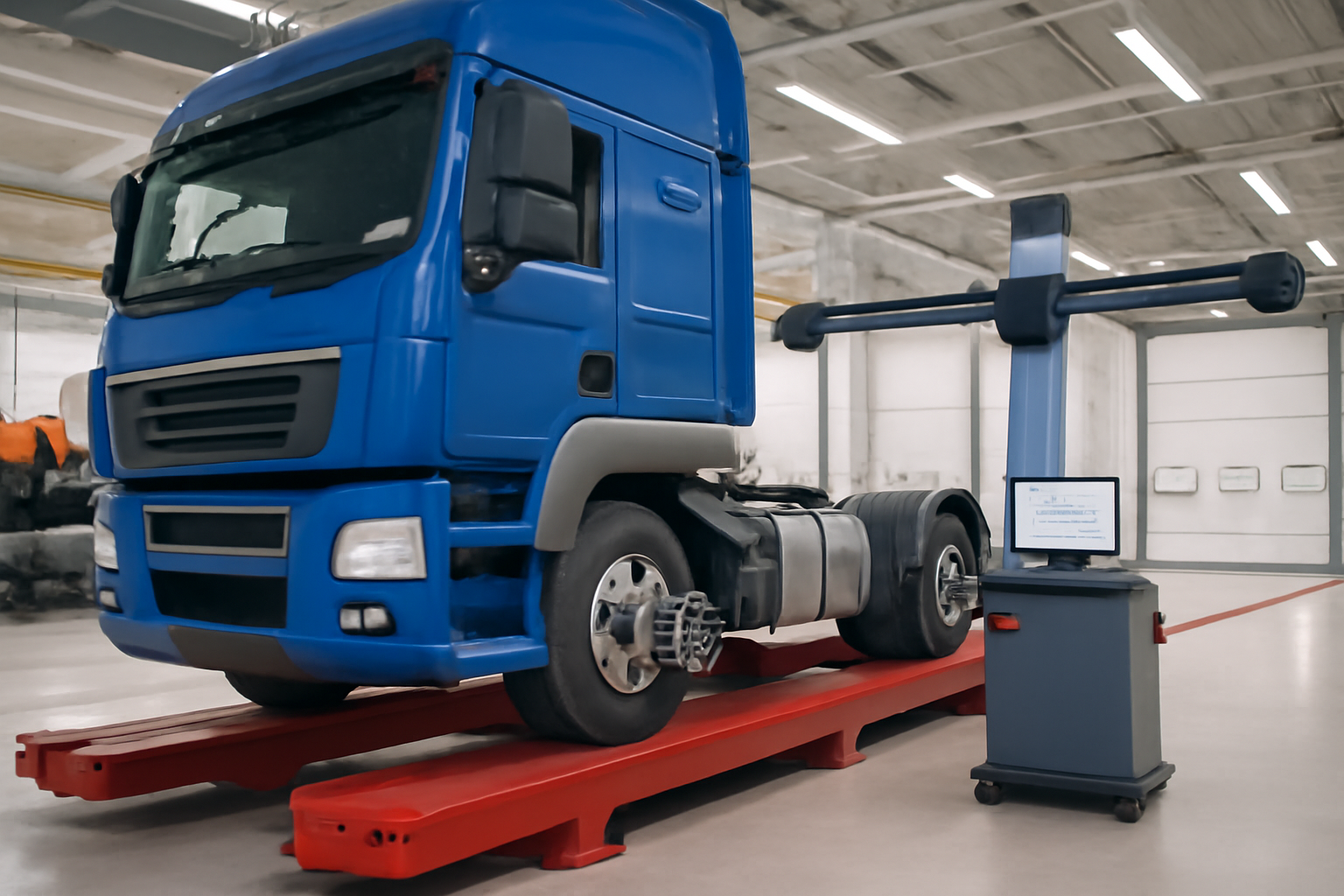

Heavy-Duty Vehicle Service Centers
Heavy-duty variants (supporting up to 2.5-ton wheel loads) are designed for large vehicles like trucks, buses, and construction machinery. Crafted from robust steel, they withstand harsh working conditions and rigorous use, providing reliable alignment for heavyweight vehicles. The broad measurement range (-50 to +50 degrees) and high load capacity cater to the unique demands of heavy-duty maintenance.

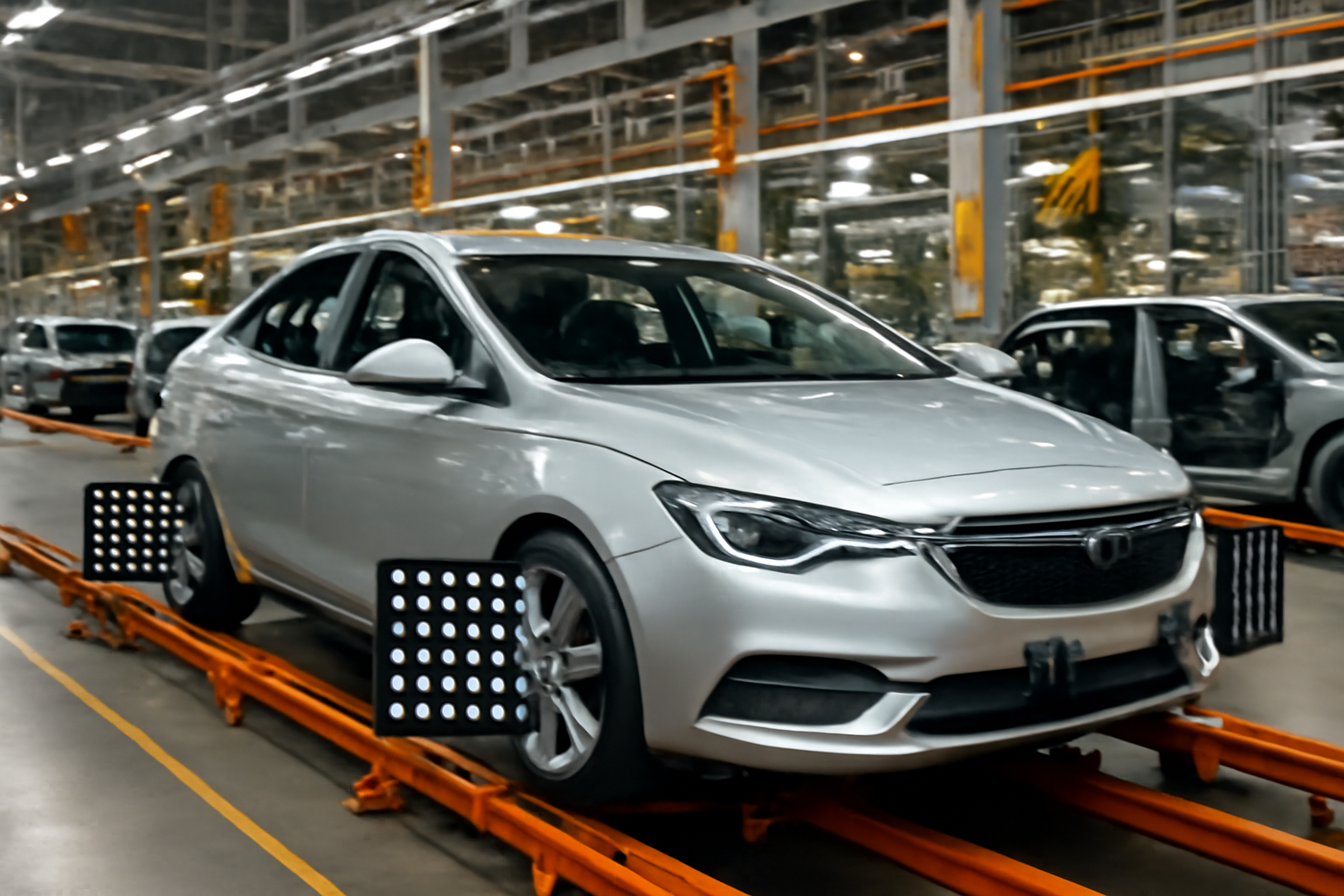

Automotive Manufacturing & Assembly Plants
OEM 3D-compatible models integrate seamlessly with 3D alignment systems, ensuring vehicles meet strict factory standards during production. Their precision and compatibility enhance workflow efficiency, reducing assembly time while maintaining consistent quality. The ability to handle mass-produced vehicles makes them essential for streamlining manufacturing processes.

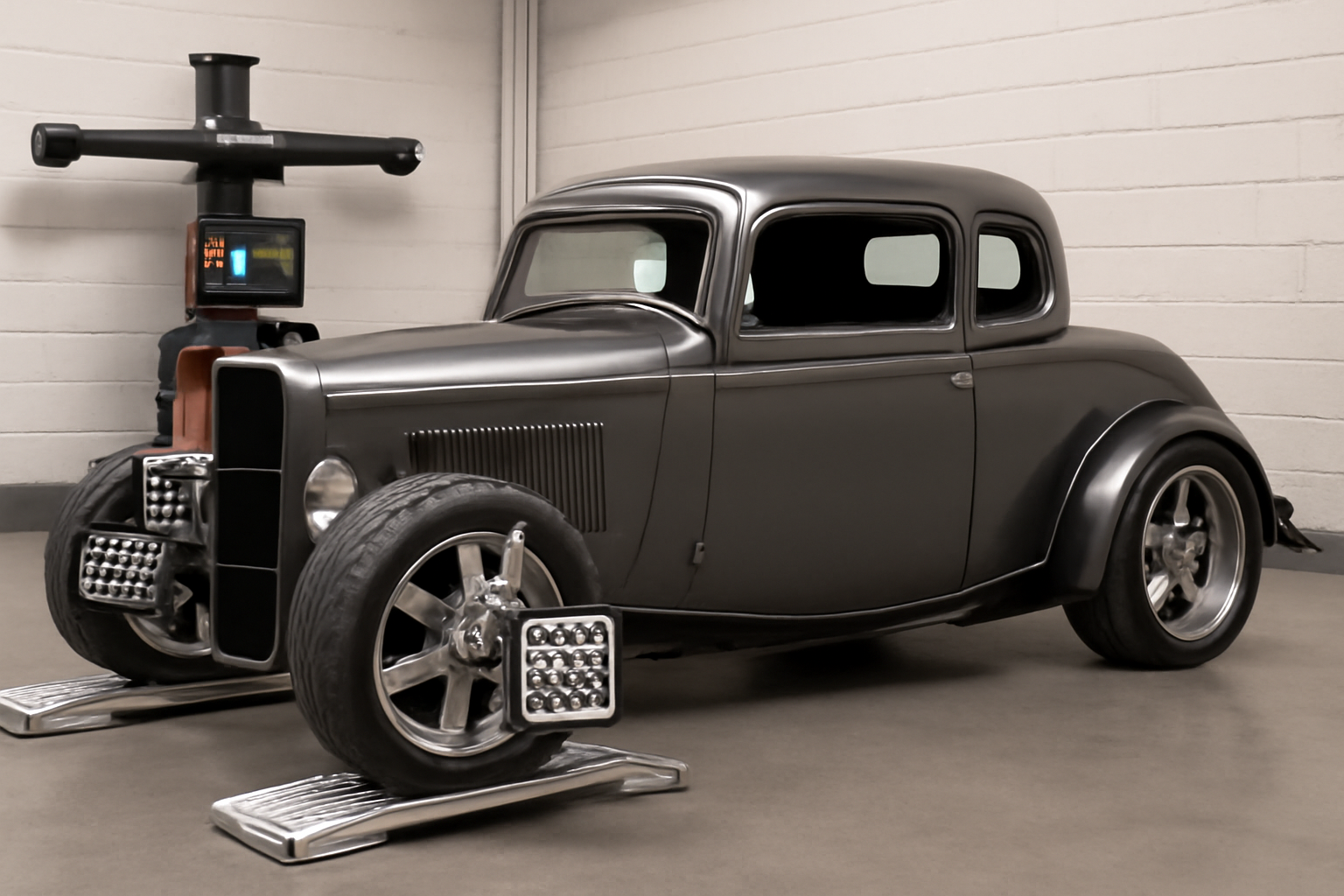

Custom Vehicle Builds & Specialized Settings
Customization services shine here, catering to modified or unique vehicles (e.g., custom builds, vintage cars). Tailored designs—whether for special sizes, materials, or low-profile aluminum models (enabling jack-free access)—ensure precise alignment for non-standard setups. Additionally, low-profile variants suit mobile alignment services or space-constrained environments, offering flexibility in diverse locations.
Contact Us
Have questions about our car alignment turn plates, need details on customization, or want to discuss which model fits your needs? We’re here to help. Reach out to our team, and we’ll provide prompt, tailored support to address your inquiries.
