A wheel alignment setup is only as stable as the hardware holding its target or sensor. When a clamp is too heavy, flexes under load, or develops corrosion around its moving parts, technicians may face slower installation and less repeatable positioning.
A well-designed Car Wheel Alignment Clamp avoids these trade-offs by using stainless steel where strength, wear resistance, and corrosion protection matter most, while aluminum keeps larger structural components rigid yet manageable. Understanding how these metals work together helps buyers assess clamp durability, handling, machining quality, and long-term workshop performance.
Repeatability begins with keeping the target in the same mechanical relationship to the wheel. The frame, guide rods, locking pin, arms, and target mount must resist movement while the technician installs the assembly, performs compensation, and makes alignment adjustments. Even slight play can make the target position less consistent from one setup to the next.
Rigidity becomes more demanding as the target grows larger, the clamp reaches farther across a wheel, or the tool is used on commercial vehicles. Longer spans create more leverage, while frequent use repeatedly loads joints and moving interfaces. A Car Wheel Alignment Clamp therefore needs more than a thick or heavy-looking frame. Its material strength must work with secure joints, controlled dimensions, and properly fitted sliding parts. A rigid rod cannot correct a loose pin, and a substantial arm cannot compensate for a misaligned bore.
Technicians lift, support, center, adjust, and remove a Car Wheel Alignment Clamp several times during one alignment job. An unnecessarily heavy tool can be awkward to hold against the wheel while the mounting mechanism is tightened. Poor balance may also cause one side to rotate before the assembly is secure.
A lighter, well-balanced Car Wheel Alignment Clamp is easier to position without rushing or supporting excessive dead weight. The lightest design is not automatically the best, however. Removing too much material can increase flex, while replacing every steel component with aluminum may accelerate wear at threads and sliding interfaces. The practical goal is a manageable structure that becomes rigid once mounted. Stainless steel and aluminum make that balance possible when each metal is placed where its properties contribute most.
The most highly stressed parts of a Car Wheel Alignment Clamp are often relatively small. Guide rods, adjustment screws, shafts, locking pins, springs, and fasteners carry concentrated loads while undergoing tightening, sliding contact, and occasional impact. These components must retain their shape and surface quality through repeated use.
Stainless steel is well suited to such locations because it can provide stiffness, strength, and wear resistance. A straight guide rod supports smooth arm travel; a durable thread maintains reliable engagement; and a strong pin helps prevent the target mount from developing play. Using steel selectively gives high-load points the mechanical properties they need without adding unnecessary mass to the entire clamp.
A Car Wheel Alignment Clamp encounters wet tires, humidity, road-salt residue, brake dust, grease, and cleaning products. Corrosion on a guide rod or screw is not merely cosmetic. Rough surfaces increase friction, retain abrasive dirt, and make adjustment less predictable.
Stainless steel naturally develops a thin, chromium-rich oxide film that can regenerate in the presence of oxygen. This passive film provides corrosion resistance, although stainless steel can still suffer pitting, crevice corrosion, or other attack under certain conditions, particularly where chlorides remain trapped. A Car Wheel Alignment Clamp used around winter road salt should still be cleaned and dried.
Cleaner threads turn more consistently, rods slide with less resistance, and pins are less likely to seize during storage. Corrosion resistance therefore preserves the function of the mechanism as well as its appearance.
“Stainless steel” describes an alloy family, not one fixed material. Grades differ in strength, hardness, and resistance to specific environments, while surface finish and heat treatment also influence performance.
Buyers should ask which components are stainless steel and how they are finished. An accurately ground rod may perform better than a rough part made from a nominally superior grade. Suitable lubrication and protection from packed debris remain important around screws and sliding blocks. In a Car Wheel Alignment Clamp, strong material cannot rescue an undersized rod, damaged thread, loose pin, or inconsistent assembly, so the steel specification must be assessed alongside component design.
The body, arms, blocks, and housings occupy far more volume than the screws and pins. Making these larger parts from aluminum can reduce the total mass of a Car Wheel Alignment Clamp without weakening the smaller components that carry concentrated loads. The tool becomes easier to lift, steady, and transfer between wheels.
Aluminum combines low weight with useful strength, durability, and corrosion resistance. Those properties suit structural parts that must resist flex while remaining practical for repeated manual handling. Good geometry allows an aluminum arm to gain rigidity from its section shape rather than from material density alone. Lower mass can also improve balance, helping technicians support the clamp close to the wheel while operating its adjustment mechanism.
For a Car Wheel Alignment Clamp, aluminum’s performance depends on alloy selection and processing. Alloying elements affect strength, workability, density, and corrosion resistance, while heat treatment or cold working can further change mechanical properties. A generic “aluminum body” claim reveals little by itself.
Aligned bores, flat mounting faces, consistent arm dimensions, and controlled clearances determine whether moving parts remain properly guided. Precisely machined aluminum blocks can keep rods parallel and support smooth adjustment. Thin unsupported sections, poorly aligned holes, or loose connections can still create flex.
A good Car Wheel Alignment Clamp should move through its range without binding, sudden looseness, or side-to-side wobble. Material gives the designer potential; machining determines whether that potential reaches the workshop.
Aluminum does not rust like ordinary steel, but exposed surfaces can still scratch, stain, oxidize, or wear. Anodizing or another suitable treatment can create a harder working surface and improve resistance to abrasion and workshop contamination. It is particularly useful around frequently handled faces and contact areas.
Surface treatment cannot replace structural strength or dimensional accuracy. A hard finish will not correct an arm that is too thin or a bore that is out of alignment. Buyers assessing a Car Wheel Alignment Clamp should check whether high-contact aluminum surfaces are treated, edges are cleanly finished, and steel parts move without cutting into adjacent blocks. A durable finish protects good engineering; it does not substitute for it.
A mixed-metal Car Wheel Alignment Clamp is not a compromise between competing materials. It is a component-by-component design decision. Aluminum belongs in the body, arms, and blocks where reduced weight and machinability are valuable. Stainless steel or suitably protected steel belongs in rods, screws, shafts, pins, and other locations exposed to concentrated load, friction, and repeated adjustment. Non-metallic pieces can protect wheel surfaces or improve grip where direct metal contact is undesirable.
This arrangement avoids two design extremes. An all-steel clamp may be robust but heavier than necessary. An all-aluminum mechanism may be light, yet threads and sliding wear points can require inserts, bushings, or other reinforcement for long service.
Clamp Area | Suitable Material | Main Benefit | Risk It Helps Reduce |
Main body and arms | Aluminum alloy | Low mass with useful rigidity | Awkward handling |
Guide rods and shafts | Stainless steel | Strength and wear resistance | Bending and mechanical play |
Screws and locking pins | Stainless steel | Durable threads and corrosion resistance | Seizing and unreliable locking |
Wheel-contact areas | Protective material or covered metal | Grip with surface protection | Rim marking or scratching |
Mixed-metal interfaces also deserve attention. Dissimilar metals in electrical contact can experience galvanic corrosion when an electrolyte is present. Suitable finishes, drainage, isolation where needed, compatible lubricants, and regular removal of salty moisture help control that risk.

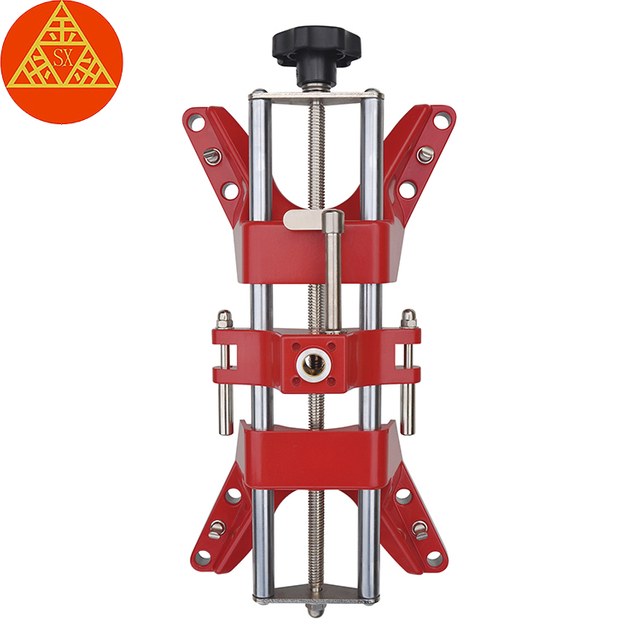

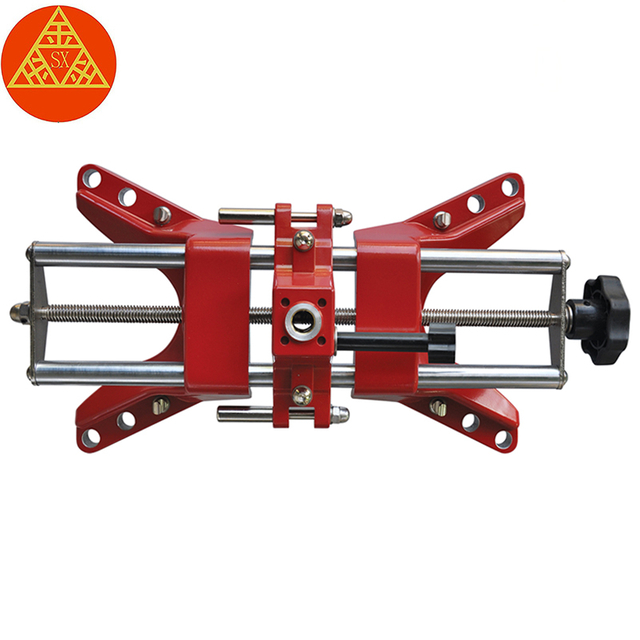

A 12–25-inch Car Wheel Alignment Clamp can combine aluminum, steel, and plastic with an 11–25-inch rim range, target-hole options of 15, 16, or 18 mm, and an accumulative tolerance of no more than 0.20 mm. These details offer a more practical basis for evaluation than broad labels such as “rugged” or “professional.”
The material combination supports lower-mass structural parts, stronger mechanical elements, and non-metallic components for protection or handling. A stated tolerance also provides a measurable reference for evaluating consistency, although buyers should still ask how dimensional accuracy is controlled across production batches.
A commercial bus clamp can apply the same material strategy across tire diameters from 18 to 47 inches. Multiple target-hole options and an accumulative tolerance of no more than 0.20 mm help adapt the design to larger-vehicle alignment work. A broader span places greater demands on arm geometry, joint rigidity, stable contact, and weight control. The materials remain similar, but the structure must respond to a different load path.
Stainless steel and aluminum work best in wheel alignment clamps when each metal is used for the task it handles well. Steel supports loaded, threaded, and wear-prone components, while aluminum keeps the main structure rigid, corrosion-resistant, and easier to handle. Buyers should still check machining tolerance, locking stability, surface treatment, wheel compatibility, and replacement-part availability.
Dongguan Dfeng Smart Tech Co., Ltd. supplies Car Wheel Alignment Clamp options for different alignment systems and vehicle applications. Its mixed-material designs can help workshops achieve steadier mounting, smoother adjustments, and more efficient daily alignment work.

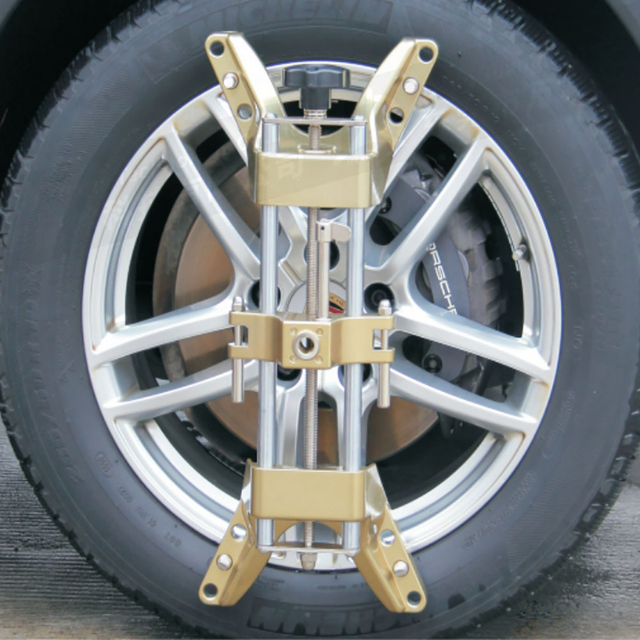

A: It secures an alignment target, sensor, or measuring head to the wheel, helping maintain stable positioning while the alignment system measures wheel angles.
A: Stainless steel strengthens high-load and wear-prone parts, while aluminum reduces body weight and provides sufficient rigidity for easier handling and repeated workshop use.
A: Material choice supports accuracy indirectly by limiting flex, movement, corrosion, and mechanical play. Machining tolerance, locking stability, and correct installation remain equally important.
A: Not always. Buyers should confirm the supported rim or tire range, mounting interface, target-hole diameter, alignment-system compatibility, and any required adapters.
A: Remove brake dust, moisture, grease, and road salt regularly. Inspect rods, threads, pins, contact points, and protective surfaces for wear or looseness.
