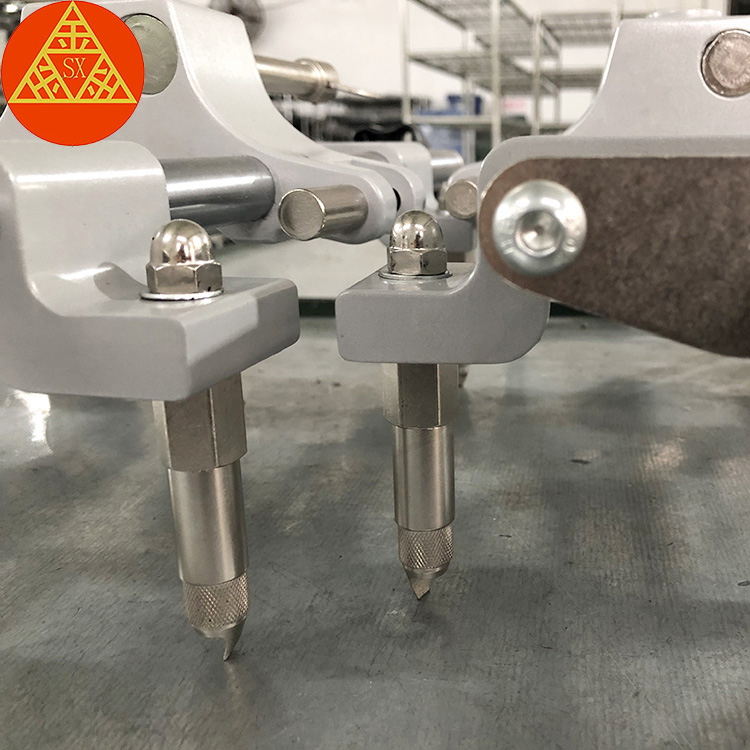

Truck wheel alignment clamp grey+extension arm, heavy duty alignment clamp with extension, commercial truck alignment tools
rofessional truck wheel alignment clamp grey+extension arm system for challenging commercial vehicle applications. Features grey protective coating and adjustable extension arms.
Request sample:click here to contact us
Our truck wheel alignment clamp grey+extension arm system incorporates specialized features that provide distinct advantages in commercial alignment environments, particularly when dealing with oversized wheels and challenging vehicle configurations.
Extended Reach Capability: The integrated extension arm system provides additional reach capability, enabling the truck wheel alignment clamp grey unit to securely engage with deeply recessed wheels and oversized truck rims that standard clamps cannot properly access.
Protective Grey Coating: The distinctive grey surface treatment on our truck wheel alignment clamp provides superior corrosion resistance while offering high visibility in dimly lit workshop environments, reducing misplacement and improving tool organization.
Reinforced Joint Mechanism: The connection point between the truck wheel alignment clamp and the extension arm features a patented locking mechanism that eliminates play and ensures rock-solid stability during measurement procedures.
Adjustable Positioning System: The extension arm component offers multiple locking positions, allowing technicians to customize the truck wheel alignment clamp grey setup for specific wheel configurations without compromising measurement accuracy.
Rapid Deployment Design: Unlike fixed-length clamps, our truck wheel alignment clamp grey+extension arm system can be quickly configured for different vehicle types, reducing setup time and increasing shop throughput.
We provide comprehensive OEM manufacturing services for our truck wheel alignment clamp grey+extension arm system, offering customization options tailored to specific commercial and fleet requirements.
Custom Length Configurations: We manufacture extension arm components in various lengths to meet specific OEM requirements, ensuring perfect compatibility with specialized alignment equipment and unique vehicle applications.
Brand-Specific Coloring: While standard units feature our protective grey coating, we offer custom color matching for the truck wheel alignment clamp components to maintain brand consistency across your tooling ecosystem.
Packaging Solutions: We offer custom packaging for the truck wheel alignment clamp grey+extension arm system, including protective storage solutions that meet your sales plan and retail requirements, and other requirements you need
Clamp Color: Protective Grey Coating
Extension Arm Length: 20" (Custom lengths available)
Maximum Reach: 22″ from mounting point
Load Capacity: 750 lbs per clamp
Material: high strength Aluminum Alloy
Surface Treatment: Hard Anodized with Grey
Locking Mechanism: Quick-Release Lever System
Compatibility: Most of Truck Alignment Systems
Experience the versatility of our truck wheel alignment clamp grey+extension arm system in your workshop. Request a evaluation sample to test the enhanced capabilities for commercial vehicle applications.
Request Sample: click here to contact us
Extensive OEM Expertise:Specializes in delivering customized OEM solutions for various needs.
China's Leading Manufacturer:Recognized as a top wheel alignment accessories manufacturer in China.
Two Decades of Experience:Over 20 years of focus on the wheel alignment accessories industry.
High-Precision Production:Equipped with advanced machines, strict QC processes, and skilled engineers.
Fast and Reliable Delivery:Ensures high output with quick delivery timelines.
Global Export Success:Products are widely exported to Eastern Europe, North America, Australia, and more.
Quality Recognized Worldwide:Trusted and approved by customers across international markets.
Your Smart Choice:Dedicated to being the most ideal partner for your needs.
Wide Compatibility
Compatible with most truck wheel alignment machines, including CCD and 3D models.
Adjustable Clamp Range
Fits rims 7–11 inches (178–279 mm) and tires 720–1200 mm in diameter with an extension arm.
Quick Adjustment Mechanism
Turning knobs allow rapid range adjustments for different rim sizes.
Lightweight and Strong Design
Easy to handle with high strength and reduced weight.
Versatile Clamp Design
Rim fingers fit into grooves for quick installation across rim size ranges.
Secure Locking Pin
Durable pin ensures secure attachment of the target to the wheel clamp.
Removable Rim Fingers
Suitable for aluminum, steel, and specialty rims, including Run-Flat and Flange-Guard tires.
High-Strength Construction
Built with aluminum blocks and steel rods for durability and reliability.
Enhanced Surface Treatment
Hard-chromed rods, plated screw rods, and processed aluminum blocks prevent damage and corrosion.
Application | All wheel alignment machine | Clamping size | 11-30 inch rim |
Target hole diameter | Φ15,Φ16 or 18mm | Accumulative tolerance | ≤0.20mm |
Raw material | Alu, steel, plastic | Color | Grey, red,etc |
N.W | 18KGS/CTN | G.W | 25KGS/CTN |
Package | 4PCS/CTN | One set incl. | 4pcs clamps+8PCS arms |
The Shengxin Truck Wheel Alignment Clamp Grey+Extension Arm is designed for professional wheel alignment machines. It provides a reliable clamping solution for precise alignment tasks.
This clamp is compatible with all wheel alignment machines. It supports a wide clamping range, fitting rims from 11 to 30 inches.
The target hole diameter options are Φ15, Φ16, or 18 mm. Its accumulative tolerance remains within ≤0.20 mm for high precision.
The product is built using aluminum, steel, and plastic materials. The available colors include grey and red.
Each set includes 4 clamps and 8 extension arms. The package contains 4 pieces per carton.
The net weight is 18 kg per carton, while the gross weight is 25 kg. It is built for durability and easy handling.
This alignment clamp meets the demands of professionals in the alignment industry with efficient and precise performance.
Q1, Why choose us?
● Rich experience: 20+ years only focus on wheel alignment accessories.
● Ability: One-stop service from design to finished products.
● Quality: We take quality first, mature quality control process to ensure good quality.
● Cost: We can provide the same quality products 20% cheaper than other suppliers.
● Talent: More than 80% of our empolyees, especially important technicians in our factory have been working more than 15 years.
● Flexibility: Small Qnt orders are also welcome.
Q2: How to prove your OEM service capability?
● We have a team of highly capable engineers.
● We have sophisticated machines to cooperate with making sample at any time.
● We have a professional sales team to follow up and communicate the entire design and sample status communication, so that the entire project can be carried out quickly and smoothly
Q3, How do you do OEM service?
● Clients tell us the size,photo and construction, we help you to design.
● Clients send us 2D, 3D drawings or samples for quotation
● Clients send us a sample.
Q4, How do you control your quality?
● Incoming material check and trace.
● Strict check policy: First product check, random check during production, full check before packing.
● Precise machines to keep product precise
● Skilled technicians and workers.
Q5, How do you solve the defective products?
● When defect happens, please take photos and send them to us, we will analyze the reasons and confirm solutions.If it is our problem, we will take our responsibility.
Q6, What products can you do?
● We can do all the wheel alignment accessories, like wheel alignment clamp, turntable, car steering wheel holder, brake pedal depressor, etc.
