3D wheel alignment tools, performance alignment tools, 3D alignment equipment
Upgrade your shop with our professional 3D wheel alignment tools. Engineered for maximum precision and compatibility with all major 3D wheel alignment systems.
Request documentation: Click here to download our product catalogue
Every component in our 3D wheel alignment tools undergoes rigorous quality verification to ensure they meet the exacting standards required for modern alignment systems. Our multi-stage inspection process guarantees that each clamp delivers the precision demanded by today's 3D wheel alignment technology.
Material Certification: Every batch of aerospace-grade aluminum used in our 3D wheel alignment tools is verified against international material standards, ensuring optimal strength and durability for professional use.
Dimensional Precision: Critical components of our 3D wheel alignment tools are measured using coordinate measuring machines (CMM) to maintain tolerances within ±0.05mm, ensuring perfect compatibility with 3D alignment targets and systems.
Functional Testing: Each unit in our 3D wheel alignment tools series undergoes complete operational testing, verifying smooth mechanism action and secure clamping force to prevent any measurement inaccuracies.
Performance Validation: Sample units from every production run of our 3D wheel alignment tools undergo rigorous testing, simulating years of workshop use to ensure long-term reliability and consistent performance.
Final Certification: Every shipped 3D wheel alignment tools package includes quality certification, providing documented evidence of compliance with international standards for professional automotive equipment.
Our 3D wheel alignment tools are designed with specific technical features that ensure superior performance in professional workshop environments. The detailed specifications below demonstrate why our tools are the preferred choice for alignment specialists worldwide.
Frame Material: Aluminum Forging

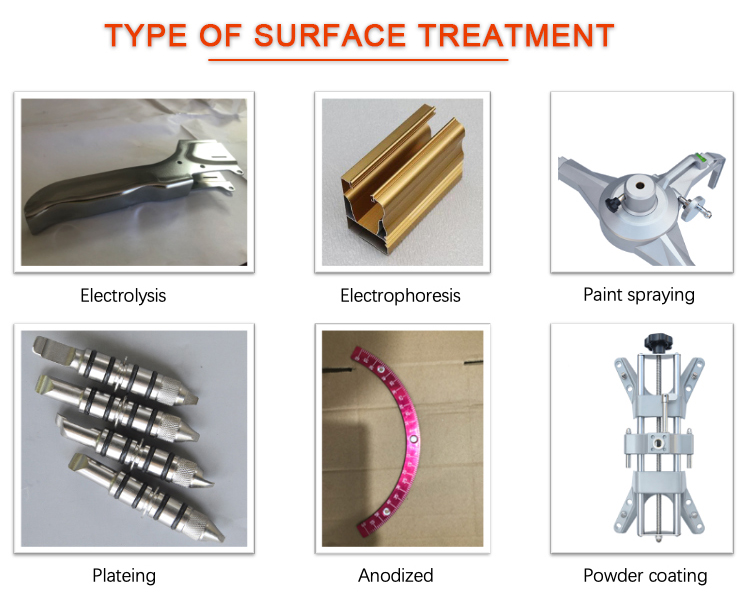

Surface Treatment: Hard Anodized
Clamping Mechanism: Quick-release four-point system
Rim Diameter Range: 12"-24"
Load Rating: 450kg per clamp
Weight: 1.8kg per unit
Temperature Range: -20°C to 50°C
Warranty: 12-month commercial use warranty
The advanced design of our 3D wheel alignment tools ensures perfect synchronization with 3D alignment cameras and sensors, providing the stable platform necessary for accurate measurements. Each tool is balanced to minimize vibration and maximize measurement precision in busy workshop conditions.
Ready to Experience Precision Engineering?
Access complete technical documentation and compliance certificates for our 3D wheel alignment tools. Contact us today to receive detailed specifications and testing reports.
[ Request Compliance Documentation ]: click here to contact us
Specification of wheel alignment clamp:
Application | All wheel alignment machine | Clamping size | 11-30 inch rim |
Target hole diameter | Φ15,Φ16 or 18mm | Accumulative tolerance | ≤0.20mm |
Raw material | Alu, steel, plastic | Color | Grey, red, etc |
N.W | 18KGS/CTN | G.W | 25KGS/CTN |
Package | 4PCS/CTN | One set incl. | 4pcs clamps |
Product Operate Guide:
How to Use the car wheel alignment Wheel Clamp:
Unpack the Wheel Clamp: Open the box and remove the wheel clamp. Remove the black plastic protective cover from the claws.
Adjust the Claws: Ensure all four claws are positioned to face inward for optimal grip on the wheel hub.
Set the Claw Diameter: Rotate the plastic handle to adjust the claws so that the diameter is slightly larger than the wheel hub for a secure fit.
Attach the Wheel Clamp: Position the claws around the wheel hub and tighten the mechanism securely.
Ensure a Secure Fit: Check that all four claws are tightly gripping the wheel hub. Gently shake the wheel clamp to ensure it is firmly in place and does not come loose.
